As we know BI Publisher is one of the best reporting tools available in the market. It is integrated with E-business suite (using OA Framework) and PeopleSoft products hence creating data for reports easy. However ADF 11g does not come with an integrated BI Publisher support.

OBIEE (Oracle BI Enterprise) provides different ways to call reports from external applications including ADF. This blog by Venkatakrishnan J explains it thoroughly: http://oraclebizint.wordpress.com/2008/01/28/oracle-bi-ee-101332-integration-into-external-applicationsportals/
However my client has an application in ADF and needed an approach where existing pages can call reports using existing queries written in View Objects.

The idea here is to make the integration generic enough so that any page can use it to generate report.

The sample application can be downloaded from here

Step 1: Environment setup

    1. The following solution is applicable for both ADF 10g and 11g. I am using ADF 11g installed from http://download.oracle.com/otn/java/jdeveloper/111/jdevstudio11111install.exe
    2. Install BI Publisher Desktop from http://download.oracle.com/otn/nt/ias/101341/bipublisher_desktop_windows_x86_101341.zip
    3. Install Oracle XE and configure HR schema. Download Oracle XE from http://download.oracle.com/otn/nt/oracle10g/xe/10201/OracleXE.exe
    4. Create a new application "Fusion Web Application (ADF)" Call it "BIIntegrationApp"
    5. Copy the jar files from \BI Publisher Desktop\Template Builder for Word\jlib into \BIPIntegrationApp\Model\lib folder. Following the the most important files needed :
                  · xdocore.jar
                  · xmlparserv2-904.jar
                  · collections.jar
                  · i18nAPI_v3.jar
                  · versioninfo.jar

        Step 2: Model Project

  • Right click the “Model” project and go to "Project Properties" > “Libraries and Classpath”. Click on “Add Jar/Directory” and add all the jar files from Model/lib folder .

  • Create a new Database connection to HR schema of Oracle XE db.




  • Create Business Components using “Business Components from Tables”
Select "Employees" and "Departments" tables for creating Entity Objects. Also create default view objects and Default Application Module.
Delete the View Links DeptMgrFkLink and EmpManagerFkLink since we wont be using them. We need a simple relation between Department and Employee in our report.




  • Next we create a layer of ADF extension classes to put generic code used for report generation. Since the XML data is generated from VO, lets extend the ViewObjectImpl.
Create a new Java class “model.base.BaseViewObjectImpl” which extends “oracle.jbo.server.ViewObjectImpl”


  • In the BaseViewObjectImpl we will add at least 2 methods getXMLData() and getReport(). {Other overridden methods can be added to pass different parameters}

getXMLData() will generate XML representation of the View Object Data


public byte[] getXMLData() {

byte[] dataBytes = null;
try {
ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
//The following statement will generate xml representation of the view data.
//the first param of writeXML takes the number of levels of child nodes to consider.
//the entire xml is then printed into the outputStream.
((XMLNode)writeXML(4, XMLInterface.XML_OPT_ALL_ROWS)).print(outputStream);

//Simple and Dirty way to generate sample XML data is to print the outputStream to log
//Then copy the data into xml file.
//However it will not be possible to generate large xml file in this way
System.out.println(outputStream.toString());

//The reason we convert to byte[] is that outputStream is not serializable
//while byte[] is serializable and can be used in client class when needed.
dataBytes = outputStream.toByteArray();
} catch (IOException e) {
System.out.println(e.getMessage());
} catch (Exception e) {
System.out.println(e.getMessage());
}

return dataBytes;
}
  • getReport() is the main method that takes the xml data and template file from parameter and converts it into the report of desired format.
Although I am passing the template path and filename, the logic can be modified to fetch the template from database. (that will be in some other post.)


/**
getReport method obtains the xml data of the view object and combines it with the template passed to it.
It then converts the report in the desired format and returns the byte[] array.
*
The reason byte[] is passed instead of OutputStream is that OutputStream is not serializable.
*
@param templateFile: File Name with Path of the RTF template file.
@param outFileType: eg HTML, PDF, RTF
*/
public byte[] getReport(String templateFile, String outFileType) {

byte[] dataBytes = null;

try {
//Process RTF template to convert to XSL-FO format
RTFProcessor rtfp = new RTFProcessor(templateFile);
ByteArrayOutputStream xslOutStream = new ByteArrayOutputStream();
rtfp.setOutput(xslOutStream);
rtfp.process();

//Use XSL Template and Data from the VO to generate report and return the OutputStream of report
ByteArrayInputStream xslInStream = new ByteArrayInputStream(xslOutStream.toByteArray());

FOProcessor processor = new FOProcessor();
ByteArrayInputStream dataStream = new ByteArrayInputStream(getXMLData());
processor.setData(dataStream);
processor.setTemplate(xslInStream);

ByteArrayOutputStream pdfOutStream = new ByteArrayOutputStream();
processor.setOutput(pdfOutStream);
byte outFileTypeByte = FOProcessor.FORMAT_PDF;
if ("HTML".equalsIgnoreCase(outFileType)) {
outFileTypeByte = FOProcessor.FORMAT_HTML;
}
processor.setOutputFormat(outFileTypeByte); //FOProcessor.FORMAT_HTML
processor.generate();

dataBytes = pdfOutStream.toByteArray();

} catch (IOException e) {
e.printStackTrace();
System.out.println("IOException when generating pdf "+ e);

} catch (XDOException e) {
e.printStackTrace();
System.out.println("XDOException when generating pdf "+ e);

}
return dataBytes;
}


  • Next we will inherit these methods in DepartmentView by extending BaseViewObjectImpl.
Open the DepartmentsView (View Object), Select the Java tab. Select Generate View Object Class. Also select “Extends button” and extend Object from “BaseViewObjectImpl”

  • In the “DepartmentsViewImpl” add the following code. It will use the getReport() from base class. This code is not necessary if we plan to pass templatePath from UI directly.
public byte[] getReport(String format) {
//Some complex logic to derive the template path based on language, customer type etc..
String templatePath = "C:\tmp\template1.rtf";
return getReport( templatePath, format);
}


  • Now create a client interface for DepartmentsView and shuttle in getReport(String). Only this method will be visible in Data Control later.

  • Compile the model project. Resolve compilation errors if any.
  • At this point its a good idea to run the Application Module and run the method getReport() to check if it generates the report. We will be able to download the report later once UI project is complete.




        Step 3: ViewController Project.

  • Create a new JSF Page. Name the page DepartmentEmployees.jspx. Do NOT create backing bean, we will create a managed bean.

  • Select the getReport(String) method from Data Controls Panel > DepartmentsView1 . Drag it and drop on the page as ADF Parameter Form.

It will create a Textbox that is bound to the parameter of the method. The value entered in the textbox will be passed to getReport() method.


  • You will see it generates a textbox and a button “getReport”. If you run the page and press the button, it will execute the method in VO but not display the report result.
  • For the textbox set the AutoSubmit property to 'true'. Ideally this is not needed but since we will add a file download listener, it wont set the values when button is clicked.
  • In order to download the report, Select “File Download Action Listener” from Component Palette and drop on the “getReport button”.

  • Select the “File Download Action Listener” and in the Property Inspector select the “Edit” next to “Method” property. It will ask to create a new Managed Bean and Handler Method.
{Note that we can give ContentType and Filename here if it is constant. Even if we do not give these it will work fine except the report will open in the same page instead of giving a download dialog.}

  • Click on the New.. next to Managed Bean Dropdown and create a new java class “view.report.ReportDownloader”
Then create a new Method “handleDeptReportDwd” and press Ok.

  • Open the ReportDownloader.java and add the following code. It is a generic code (Thanks to Steve Muench) that calls a method from data binding and returns it result.

/**
This example illustrates does not specifically set any
method action parameter values, so the parameter values
are picked up from the EL expressions configured on the
method action binding arguments in the page definition
metadata.
http://blogs.oracle.com/smuenchadf/examples/#152
*/
public Object executeMethodWithResult(String methodActionId) {
BindingContainer bindings = BindingContext.getCurrent().getCurrentBindingsEntry();
OperationBinding operationBinding = bindings.getOperationBinding(methodActionId);
Object result = operationBinding.execute();

if (!operationBinding.getErrors().isEmpty()) {
throw new RuntimeException("Error while executing.. "+operationBinding.getErrors());
}
return result;
}


  • Add the following code to handleDeptReportDwd(). It simply calls the above util method and passes getReport which is id of methodAction tag in DepartmentEmployeesPageDef.xml

public void handleDeptReportDwd(FacesContext facesContext, OutputStream outputStream) {
try {
Object result = executeMethodWithResult("getReport");
outputStream.write((byte[])result);
} catch (IOException e) {
System.out.println("Exception "+e);
}
}


        Step 4: BI Publisher Template

  • The Only reason we didn’t create it earlier was because we needed to get the data xml. And now we can get the data xml by running the DepartmentEmployees page.
  • To get the xml, go to the DepartmentsView and open its client Interface and shuttle in getXMLData method.

  • Next open DepartmentEmployees page and drop in the getXMLData() from DataControl and drop it as button. Run the page.


  • Since we put the System.out.println() in getXMLData() method, when we execute that method from the page, it will print the xml data in log file. (If your xml file is big, add a “File Download Action Listener” to this button and write another method to download)
  • Copy the xml data and save it in a file depts.xml.
  • Create a new RTF template with the depts.xml and save as DeptTemplate.rtf
Step 5: Run the application
  • The only thing left is to change the path of template file in DepartmentsViewImpl.java and run the page.
  • Run the page, enter "pdf" in the textbox and press getReport button to get the report.


  •  Enter "HTML" in textbox and click getReport to receive report in HTML format.




Hope this helps :)




Using ADF 11g (should work in 10g as well)
There are many cases where we need to mark a row as deleted by setting a flag in database instead of physically deleting it. Fusion developers guide gives a way to achieve this http://download.oracle.com/docs/cd/E15051_01/web.1111/b31974/bcadveo.htm#CEGIBHBC.
However we needed to have this feature in almost all the table mandating a generic solution for soft delete.

The following code can be downloaded from here


Heres how I approached it:

  1. Create a new History Column for SoftDelete
  2. Create Base Class for Entity Implementation Object and override 2 methods of EntityObjectImpl: remove(), doDML()
  3. Create an application to test our work

Step 1: Create a new History Column - soft delete



  • In Jdeveloper Tools > Preferences > Business Components > History Types. Add a new History Type "soft delete" with id 11 (Note that type id's 1-10 is reserved.



Step 2: Create Base EntityImpl class

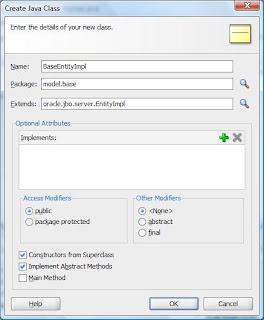

  • Create a new Fusion ADF Application and add a new java class that extends oracle.jbo.server.EntityImpl.


  • In the BaseEntityImpl override the following methods:
    • remove() - To set the value of column with History type 11 to deleted value.
    • doDML() - During delete, to force an entity object to be updated instead of deleted. And during insert to default the value of column with History type 11 to active value.



    private static final byte SOFT_DELETE_TYPE = 11;

    public int getSoftDeleteColumn() {
        int colIndex = -1;
        for (AttributeDef def : getEntityDef().getAttributeDefs()) {
            if (((AttributeDefImpl)def).getHistoryKind() == SOFT_DELETE_TYPE) {
                colIndex = def.getIndex();
            }
        }
        return colIndex;
    }

    @Override
    public void remove() {
        int deleteCol = getSoftDeleteColumn();
        if(deleteCol != -1) {
            setAttribute(deleteCol, "Y");
        }

        super.remove();
    }

    @Override
    protected void doDML(int operation, TransactionEvent transactionEvent) {
        int deleteCol = getSoftDeleteColumn();
        if (EntityImpl.DML_DELETE == operation && deleteCol != -1) {
            operation = DML_UPDATE;
        }
        if(EntityImpl.DML_INSERT == operation && deleteCol != -1) {
            setAttribute(deleteCol, "N");
        }
        super.doDML(operation, transactionEvent);

    }



Step 3: Now to the good stuff - Test the base class

  • In Oracle XE HR schema add delete_flag to employees table.
    • alter table employees
      add delete_flag varchar2(1)

      update employees
      set delete_flag = 'N'


  • Set the default base entityImpl class for the application using Application > Default Project Properties.


  • Create business components (EO, VO & AM) for employees table.



  • In the EmployeesEO set the history column for "DeleteFlag" to "soft delete".


  • Run the Application Module to test insert and delete.







Using ADF 11g (ADF Faces & ADF-BC) and Oracle XE (HR Schema)
At a number of occasions I have had to create a Table that would allow user to add new rows from values of existing table. For eg. Consider creating an order by searching and adding a product. In these cases we generally create a popup for searching product and add selected products to Order.






The source code can be downloaded from here
In this sample I will add employees from HR schema into a new table my_employees.

1. Create a new table in HR schema: my_employees

drop table my_employees

create table my_employees
(
id number primary key,
emp_id number,
creation_date date,
update_date date
)

create sequence my_employees_s
start with 1
increment by 1


2. In Model Project:
Create EO, Default VO and AM for tables employees and my_employees tables
Create AO between EmployeesEO and MyEmployeesEO. Also create Impl files for both EOs.
Create VL between EmployeesVO and MyEmployeesVO.




Add Name, email attributes to MyEmployeesVO from EmployeesEO to display Name and email of selected employees.






In the MyEmployeesEOImpl add the following code to create() method
    protected void create(AttributeList attributeList) {
        super.create(attributeList);
        SequenceImpl seq = new SequenceImpl("MY_EMPLOYEES_S", getDBTransaction());

        setId(seq.getSequenceNumber());
        setEmpId((Number)attributeList.getAttribute("EmpId"));
        //setEmpId(new Number(1));
    }

Add VOImpl and VORowImpl to EmployeesVO & MyEmployeesVO. This will be used in AM while creating new rows.

In
AppModuleAMImpl, create a method addSelectedEmployees(Key[] selectedEmp). WHY exactly the code uses Key[] will be clear once we create UI.
    public void addSelectedEmployees(Key[] selectedEmp) {
        for(Key key : selectedEmp) {
            try {
                //Either get the row using the key
                //Or since in this case, Key is employeeId we can use key.getAttribute(1) as well
                EmployeesVOImpl empVO = getEmployees1();
                EmployeesVORowImpl empRow = (EmployeesVORowImpl)empVO.findByKey(key, 1)[0];
                NameValuePairs nvp = new NameValuePairs();
                nvp.setAttribute("EmpId", empRow.getEmployeeId());

                MyEmployeesVOImpl myempVO = getMyEmployees1();
                MyEmployeesVORowImpl myempRow = (MyEmployeesVORowImpl)myempVO.createAndInitRow(nvp);
                myempVO.insertRow(myempRow);

            } catch (Exception e) {
                throw new JboException("Error in addSelectedEmployees "+e.getMessage());
            }
        }
    }

In the client Interface screen of AM, add the method addSelectedEmployees in selected list. We create client interface for our method since we will call it from a ViewController via bindings.






At this point its good to execute the AM. However create new row for MyEmployees will not work since it wont get the EmpId.

3. So Next we turn our attention to ViewController project:

Create a page addEmployees.jspx.
All we will add to the page is a rich table for Myemployees and a popup containing query region for employees.

Add MyEmployees1 from Data Control to the page as read-only table. Enable the 'Row Selection' option






Surround table with a PanelCollection and add 2 buttons 'Add New' and 'Delete' on it.







Next we Add a popup dialog on the page and drop Employees1 as a query region on it.

Change the RowSelection for result table to 'multiple' & Note that the 'SelectedRowKeys' is empty while 'SelectionListener' has value #{bindings.Employees1.collectionModel.makeCurrent}







In order to open the popup, add showPopupListener on 'Add New' button and put popupId using 'Edit' dialog.
In order to delete, Grab Delete operation from MyEmployees1 data control and drop on Delete button.
Also add PartialTriggers of both buttons on the main table.

We can test our page at this point and it should display blank MyEmployees Table. Clicking on the Add New button will display popup and we can search employees. The selected employees however will not be added to MyEmployees. For that we need to add some code in managed bean to get selected employees and pass it to AM method that we created earlier. remember?







Go to page definition of addEmployees page. Add a new methodAction: addSelectedEmployees(Key[]) to bindings.





In the dialog listener property of af:dialog add a method #{EmployeeMgr.handleAddEmployee}. Create the managed bean EmployeeMgr if not present.

Add the following code to handleAddEmployee() method to get all the selected employees from the popup table.

    public void handleAddEmployee(DialogEvent dialogEvent) {
        // get all the selected attributes...
        if(dialogEvent.getOutcome().equals(DialogEvent.Outcome.ok)) {
            //Find the search results table and get all selected values
            RichTable table =  (RichTable)

            findComponent(dialogEvent.getComponent(), "resId1");
            RowKeySet set = table.getSelectedRowKeys();
            System.out.println("Set of selected
            "+set.getSize()+"  "+set);
            Iterator it = set.iterator();
            Key[] keyList = new Key[set.getSize()];
            int i = 0;
            //Add all the selected Keys to array
            while(it.hasNext()) {
                Key key = (Key)((List)it.next()).get(0);
                keyList[i++] = key;
            }

            //Pass the Keys as parameter to method
            //addSelectedEmployees
            Map map = new HashMap();
            map.put("selectedEmp", keyList);
            executeMethodWithParams("addSelectedEmployees", map);

            //NOTE: following line refreshes the main page
            AdfFacesContext.getCurrentInstance()
            .addPartialTarget(findComponentInRoot("t1"));
        }
    }


Dont forget to drop the commit and rollback actions from DataControl onto the page to save the changes.

The final page will look like this:






I hope this is useful. I would surely appreciate your comments and issues in the project.

Newer Posts Home
